This post is a list of basic logic gates with inputs and outputs. 0 represents off; 1 represents on. There are 7 logic gates listed below alphabetically with electrical diagrams.

In the diagrams, '+5v' represents electricity; 'A' represents the first input 'B' represents the second input; a v-shaped intersection represents a transistor; a zig zag line represents a resistor; 3 horizontal parallels lines represent ground; a dot at an intersection represents a connection.

A transistor conducts electricity only if the input is turned on. If the electricity has a direct connection to ground then the circuit loses electricity. The resistor allows electricity to pass through it but breaks direct connection to ground.

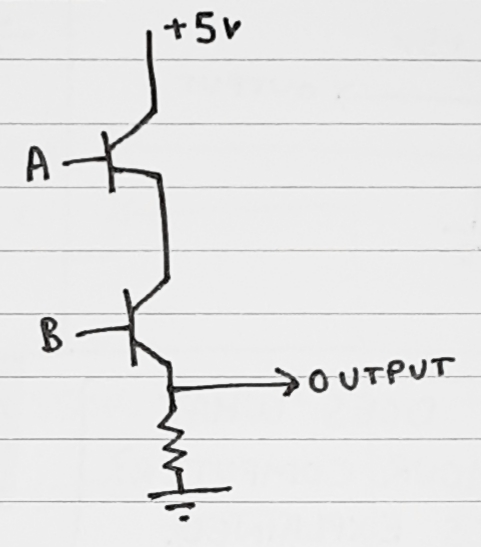

__AND__

0, 0 = 0

0, 1 = 0

1, 0 = 0

1, 1 = 1

__NAND (NOT AND)__

0, 0 = 1

0, 1 = 1

1, 0 = 1

1, 1 = 0

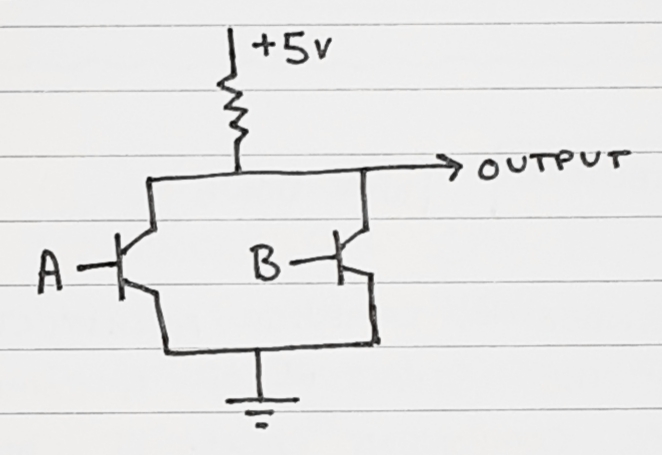

__NOR (NOT OR)__

0, 0 = 1

0, 1 = 0

1, 0 = 0

1, 1 = 0

__NOT__

0 = 1

1 = 0

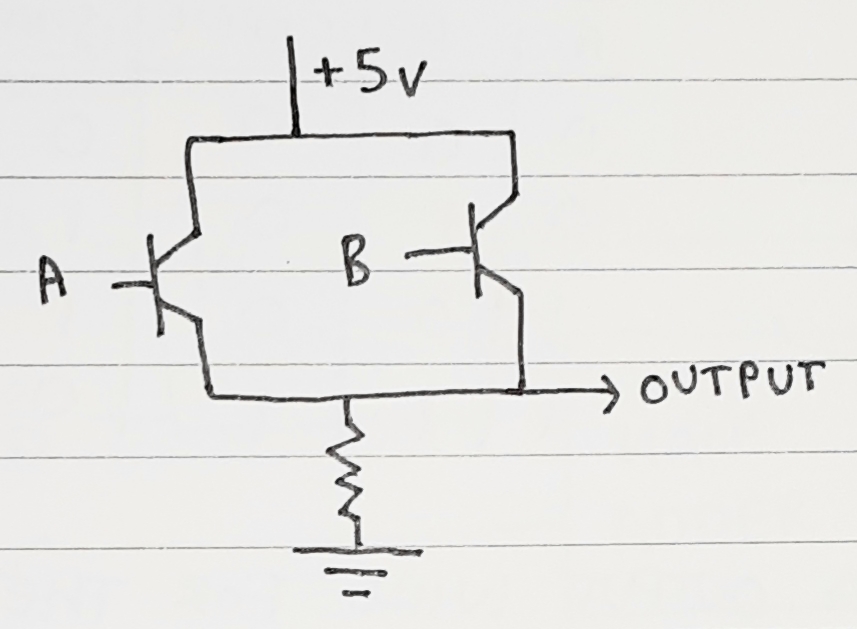

__OR__

0, 0 = 0

0, 1 = 1

1, 0 = 1

1, 1 = 1

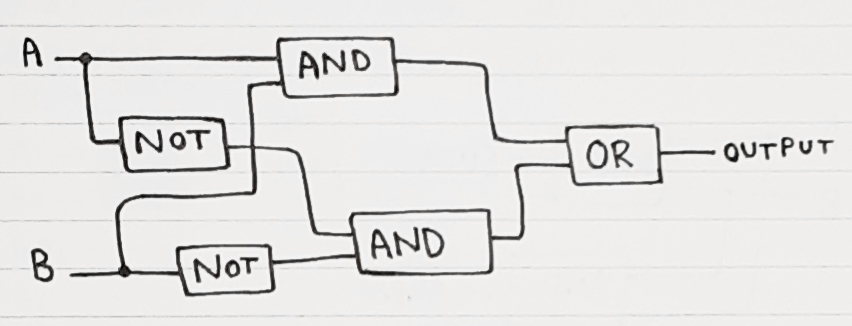

__XNOR (Exclusive NOT OR)__

0, 0 = 1

0, 1 = 0

1, 0 = 0

1, 1 = 1

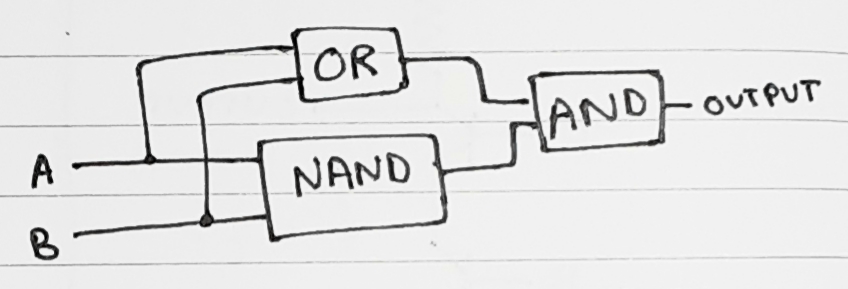

__XOR (Exclusive OR)__

0, 0 = 0

0, 1 = 1

1, 0 = 1

1, 1 = 0
